CPH-BK-F2Z-OM2C-L

Plus Corning OM2 Multimode Duplex 50 Micron Fiber Zip Cord 3mm Jacket LSZH - Orange

Fiber Optic Bulk Cable
$1.09
CPH-BK-F2Z-OM2C-L

Product Details

CableChum® offers Plus Corning OM2 Multimode Duplex 50 Micron Fiber Zip Cord 3mm Jacket LSZH - Orange - SOLD PER METER, add quantities needed.

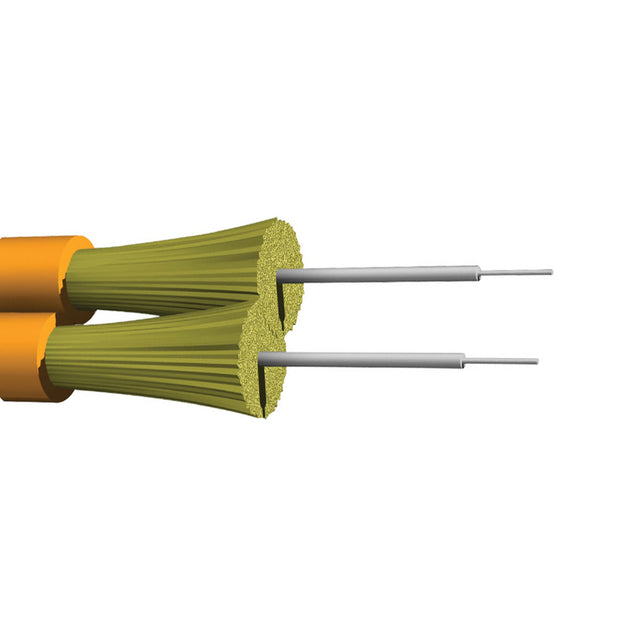

This bulk fiber optic cable is a OM2 multimode duplex 50µ zip cord 3mm jacket LSZH. This cable is primarily used in the assembly of duplex fiber patch cords.

Physical Characteristics
Color Orange
Fiber Optic Type Zipcord 3.0 Multimode 50/125um
Fiber Core Diameter 50.0µ ± 3.0µm
Bandwidth Range @850 > 500 MHz/km
@1310 > 500 MHz/km
Attenuation Range @850nm 3.0dB/km
@1310nm 1.0dB/km
Maximum Tensile Load Short Term, N 500
Long Term, N 300
Minimum Bending Radius Load 50mm
Unload 30mm
Fiber Count 2C
Tight Buffer Diameter 0.9µ ±0.05
Cable Diameter 3mm
Fire Rating LSZH
Uniformly Distributed Kevlar
Operating Temperature -40~+75
Environmental Compliant
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.03 lbs [0.01 kg] PER METER
