Product Details

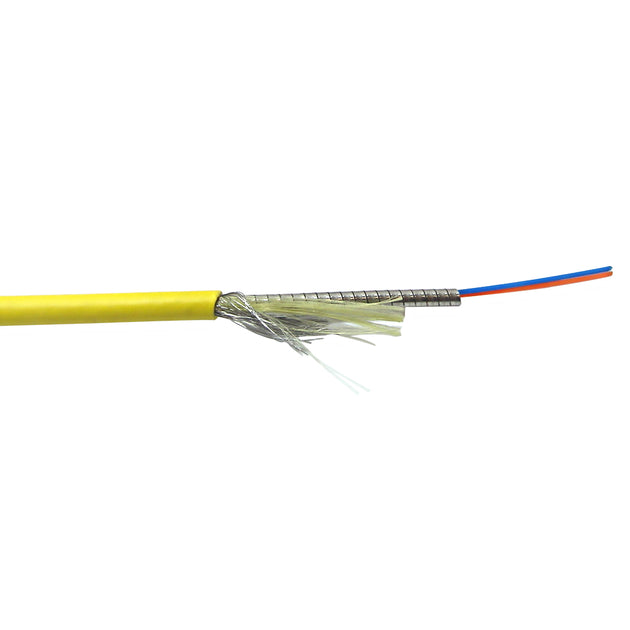

CableChum® offers Corning 28e+ 9 Micron 2-Fiber Single-Mode Plenum Armored OFNP - Yellow - SOLD PER METER, add quantities needed.
This bulk 2-strand OS2 armored fiber cable is plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
|
Physical Characteristics
|
|
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9µ Single-mode Plenum Armored Tight Buffered Cable |
| Fiber Count | 2-Strand |
| Sub Unit Diameter | 600Micron |
| Nominal Diameter | 3.3mm |
| Tension(Installation) | 400N |
| Tension(Long Term) | 200N |
| Bending Radius(Installation) | 20D(mm) |
| Bending Radius(Long Term) | 10D(mm) |
| Operating Temperature | -20deg C ~ +70 deg C |
| CrushResistance | 5000N/100mm â Short Term 3000 N/100mm â Long Term |
| Attenuation Range | @1310nm0.4dB/km @1550nm0.3dB/km |
| Fire Rating | OFNP |
|
Environmental Compliant
|
|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.30 PER METER |
