Product Details

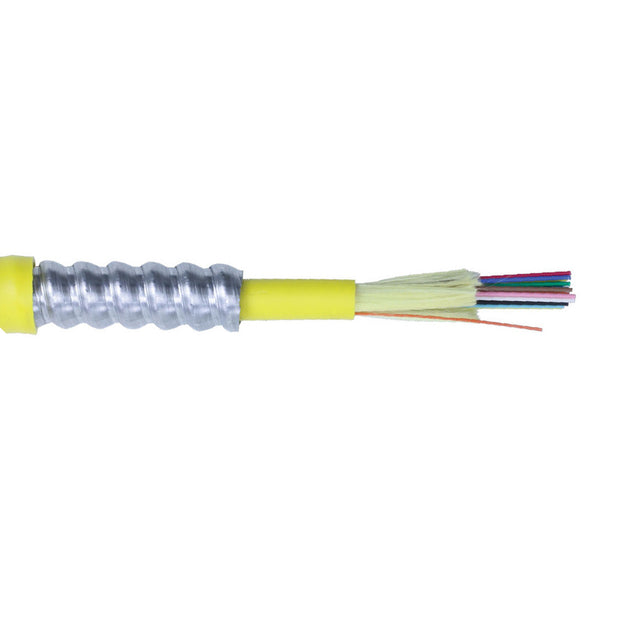

CableChum® offers Corning 28-Ultra 9 Micron 12-Fiber Single-Mode Plenum Armored OFNP - Yellow - SOLD PER METER, add quantities needed.
This bulk 12-strand armored fiber cable is plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.
|
Physical Characteristics
|
|
|---|---|
| Color | Yellow |
| Fiber Optic Type | OS2 9µ Single-mode Plenum Armored Tight Buffered Cable |
| Fiber Count | 12-Strand |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 11.8mm |
| Tension(Installation) | 100 lbs |
| Tension(Long Term) | 30 lbs |
| Bending Radius(Installation) | 17.7cm |
| Bending Radius(Long Term) | 12.7cm |
| Operating Temperature | -0 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +75 deg C |
| Attenuation Range | @1300nm 0.5dB/km @1550nm 0.5dB/km |
| Gigabit Ethernet Min. Link Distance | 1300nm = 5000 |
| 10 Gigabit Ethernet Min. Link Distance | 1300nm = 10000 |
| Fire Rating | OFNP |
|
Certification(s)
|
|
| ETL | Yes |
| c(ETL) | Yes |
|
Environmental Compliant
|
|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.4 lbs PER METER |
