CPH-BK-F12A-OM2-P

Corning ClearCurve 50 Micron 6-Fiber Multi-Mode (OM2) Armored Plenum OFNP - Orange

Fiber Optic Bulk Cable
$12.95
CPH-BK-F12A-OM2-P

Product Details

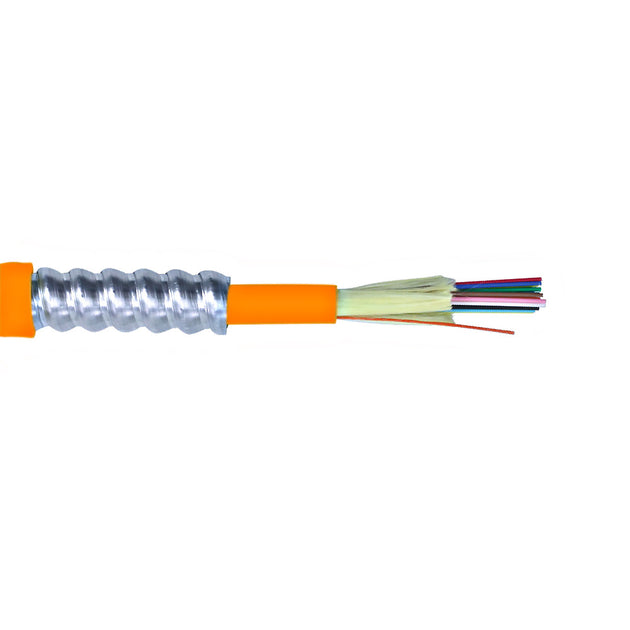

CableChum® offers Corning ClearCurve 50 Micron 12-Fiber Multi-Mode (OM2) Armored Plenum OFNP - Orange - SOLD PER METER, add quantities needed.

This bulk 12-strand OM2 armored fiber cable is plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.

Physical Characteristics
Color Orange
Fiber Optic Type OM2 50µ Multi-mode Plenum Armored Tight Buffered Cable
Fiber Count 12-Strand
Sub Unit Diameter 900 Micron
Nominal Diameter 11.8mm
Tension(Installation) 100 lbs
Tension(Long Term) 30 lbs
Bending Radius(Installation) 17.7cm
Bending Radius(Long Term) 12.7cm
Operating Temperature -0 deg C ~ +70 deg C
Storage Temperature -40 deg C ~ +75 deg C
Attenuation Range @850nm 3.5dB/km
@1300nm 1.5dB/km
Bandwidth Range @850nm > 500 MHz/km
@1300nm > 500 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 600
1300nm = 600
10 Gigabit Ethernet Min. Link Distance 850nm = 82
Fire Rating OFNP
Certification(s)
ETL Yes
c(ETL) Yes
Environmental Compliant
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.4 lbs PER METER
CableChum® offers Corning ClearCurve 50 Micron 12-Fiber Multi-Mode (OM2) Armored Plenum OFNP - Orange
