Product Details

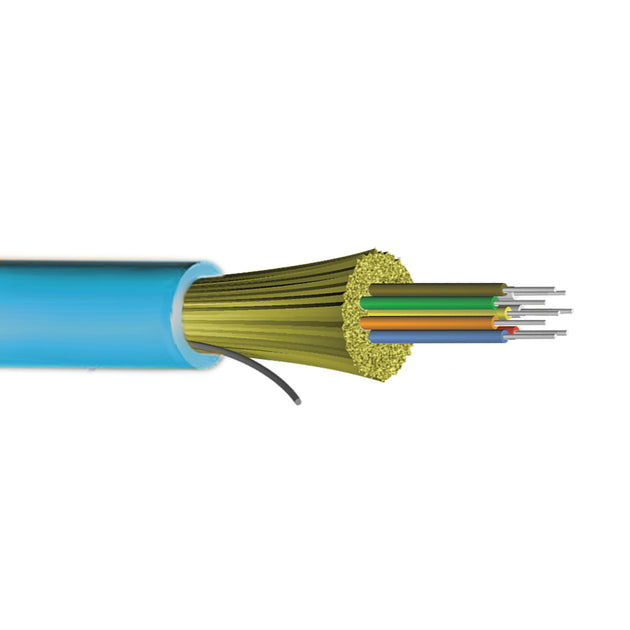

CableChum® offers Corning Clear Curve OM4 50 Micron 6-FiberMulti-Mode Plenum I/O AFL OFNP - Aqua - SOLD PER METER, add quantities needed.
This bulk 6-strand OM4 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
|
Physical Characteristics
|
|
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 50µ Multimode Plenum Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 6-Strand |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 6.4mm |
| Tension(Installation) | 300 lbs |
| Tension(Long Term) | 90 lbs |
| Bending Radius(Installation) | 9.6cm |
| Bending Radius(Long Term) | 6.4cm |
| Operating Temperature | -40 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Installation | -10 deg C ~ +70 deg C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 3500 MHz/km @1300nm > 550 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1040 1300nm = 540 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 550 |
| Fire Rating | OFNP |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
|
Certification(s)
|
|
| ETL | Yes |
| c(ETL) | Yes |
|
Environmental Compliant
|
|
| RoHS | Yes |
