CPH-BK-F2Z-OM3B-P

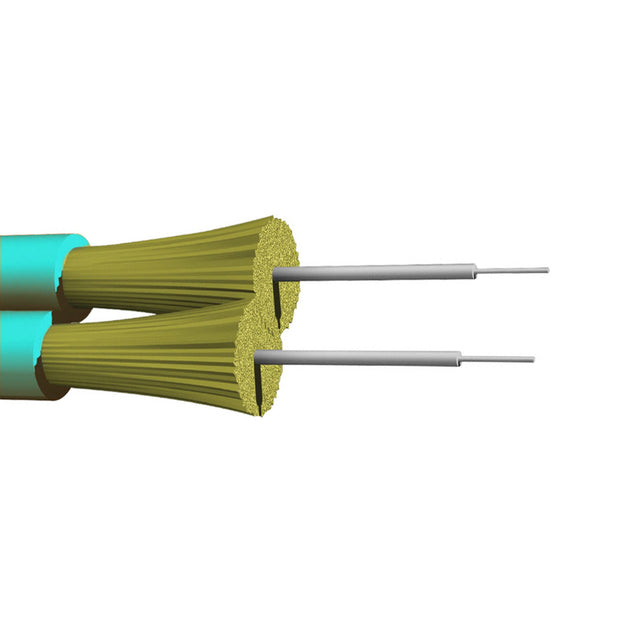

AFL Corning OM3 Multimode PLENUM duplex 50 Micron fiber zip cord 2mm jacket OFNP - Aqua

Fiber Optic Bulk Cable
$1.54
CPH-BK-F2Z-OM3B-P

Product Details

CableChum® offers AFL Corning OM3 Multimode duplex 50 Micron fiber zip cord 2mm jacket OFNP - Aqua - SOLD PER METER, add quantities needed.



This bulk fiber optic cable is a OM3 multimode duplex 50µ plenum zip cord 2mm jacket OFNP. This cable is primarily used in the assembly of duplex fiber patch cords.

Physical Characteristics
Color Aqua
Fiber Optic Type OM3 Plenum Zipcord 2.0 Multimode Duplex 50/125µm
Fiber Core Diameter 50µ ± 2.0µm
Nominal Diameter 2.0mm x 4.0mm
Tension(Installation) 22 lbs
Tension(Long Term) 7 lbs
Bending Radius(Installation) 2.0cm
Bending Radius(Long Term) 1.2cm
Operating Temperature 0 deg C ~ +70 deg C
Storage Temperature -40 deg C ~ +75 deg C
Attenuation Range @850nm 3.0dB/km
@1300nm 1.2dB/km
Bandwidth Range @850nm > 1500 MHz/km
@1300nm > 500 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 1000
1300nm = 550
10 Gigabit Ethernet Min. Link Distance 850nm = 300
Fire Rating OFNP
Certification(s)
ETL Yes
c(ETL) Yes
Environmental Compliant
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 0.03 lbs [0.01 kg] PER METER
