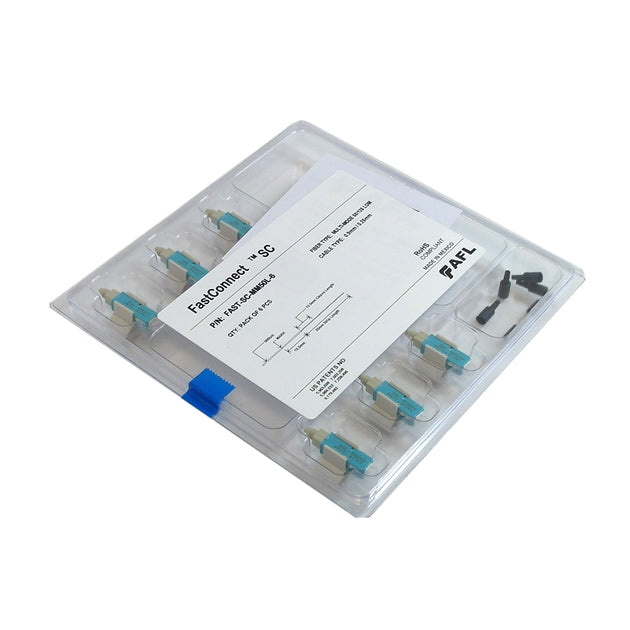

CableChum® offers FASTCONNECT SC MM OM3/4 Aqua Connector - 6 Pack

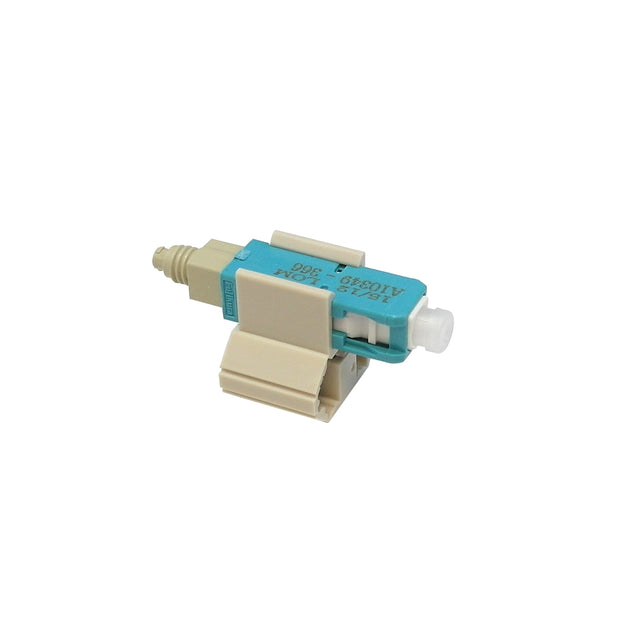

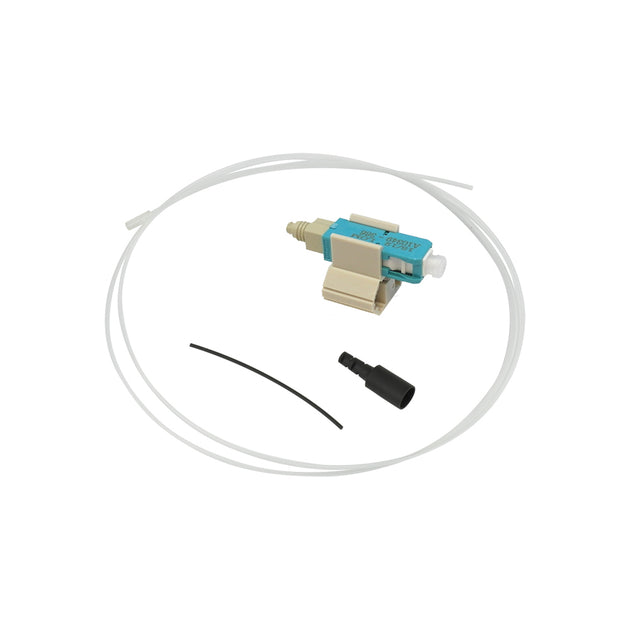

These fiber optic FASTConnect field-termination SC connectors are factory pre-polished, field-installable connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination on 50 micron multimode optical fibers. FAST Connectors are compatible with 900 µm optical fibers, as well as 2 mm and 3 mm cordage (2mm and 3mm boots sold separately). The connectors are color coded per industry standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a "pass/fail" signal once physical contact is achieved.
|Fiber Size||50/125 micron|
|Operating Temperature||-40°C to +75°C|
|Connector||SC Simplex Male|
|Insertion Loss||Average: 0.1 dB, Maximum: 0.5 dB|
|Return Loss||Average: -25 dB, Maximum: -20 dB|
|Product Weight||0.19 lbs|
