Product Details

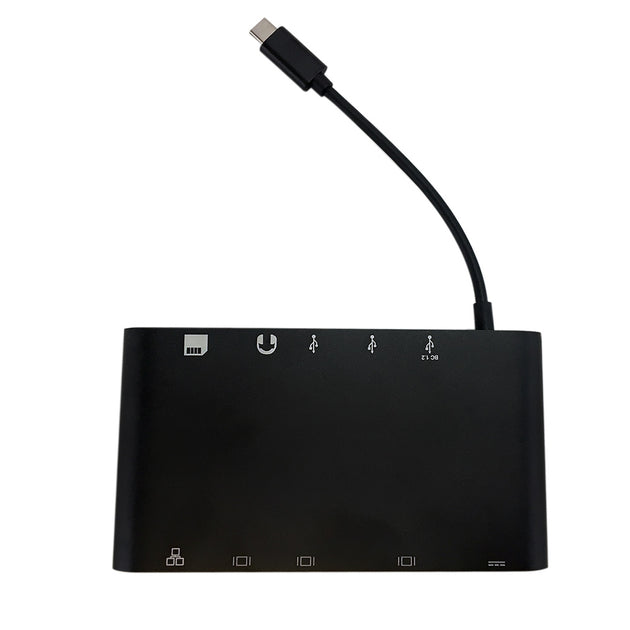

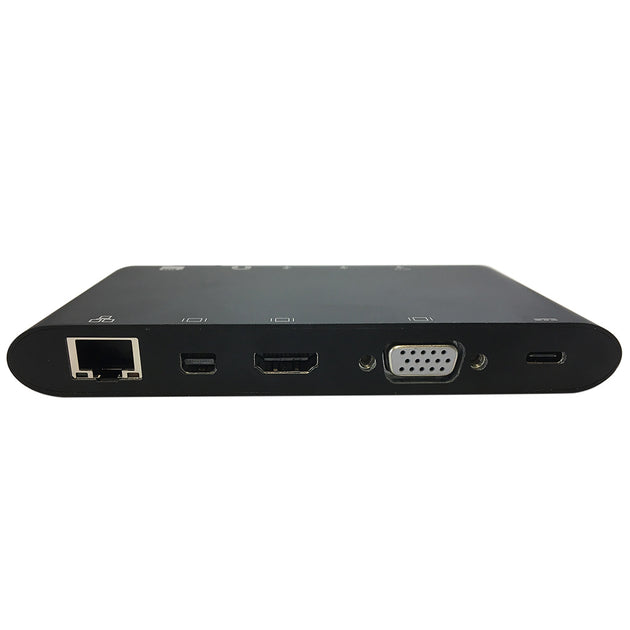

CableChum® offers the USB 3.1 Type C to docking station - Black
This USB 3.1 Type-C adapter consists of a USB 3.1 Type-C male on one end and a HDMI female, mini-DisplayPort, USB 3.1 Type-C female, RJ45 female, VGA female, 3x USB 3.0 female, 3.5mm stereo female, SD card slot and a Micro SD card slot on the other end. It allows you to connect additional devices through your USB Type-C port and create a permanent or temporary workstation.
*Not intended for uses with multiple monitors. Additional monitors should be connected through the USB Type-C port of the dockings station.
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 6 inches |
| Color | Black |
| Connector Plating | Nickel |
|
Connector(s)
|
|
| Connector A | USB 3.1 Type-C Male |
| Connector B | HDMI Female |
| Mini Displayport Female | |
| USB 3.1 Type-C Female | |
| RJ45 Female | |
| VGA Female | |
| 3x USB 3.0 Female | |
| 3.5mm Stereo Female | |
| SD and Micro SD card slots | |
|
Performance
|
|
| HDMI Resolution | Up to 1080p |
| Mini DisplayPort Resolution | Up to 2560x1440 |
| VGA Resolution | Up to 1080p |
| USB 3.0 Ports | 3 Devices Simultaneously with Max Total Output of 900mAH and Data Speed up to 5Gbps |
| Stereo Port | Supports Both Microphone and Headphone |
| Ethernet | 10/100/1000Mbps Bandwidth |
| Compatibility | Compliant with USB 3.1 |
| Backward Compatible with USB 3.0 and USB 2.0 | |
|
System Requirements
|
|
| Operating System | Windows Compliant |
| Mac Compliant | |
|
Certifications
|
|
| FCC | Yes |
| CE | Yes |
|
Environmental Compliant
|
|
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
