CPH-S6-25-RCA-03

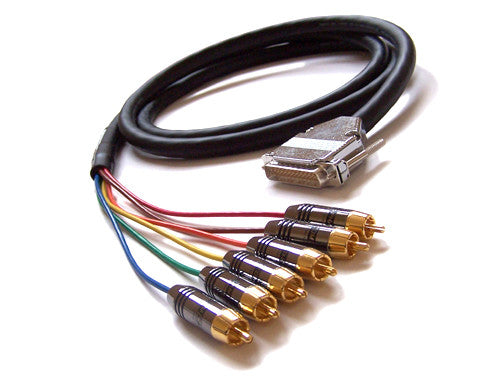

DB25 Male to 6 x RCA Male 6-channel Premium Snake cable, THX pinout

Premium Snake Cables
$87.56
CPH-S6-25-RCA-03

This audio snake cable has a DB25 male on one end and six RCA males on the other. It has a THX pinout and is typically used to connect a 5.1 surround sound source to a preamp or receiver.

  • Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
  • Dual 100% aluminum mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • High quality, gold plated shielded connectors allow for optimum connectivity and maintain a clean signal integrity
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity

Physical Characteristics
Color Black
Connector Plating (DB25) Nickel
Connector Plating (RCA) Gold
Cable Shielding Plating (RCA) Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil
Wire Gauge 24AWG
Pinout THX
Connectors
Connector A 1 - DB25 Male
Connector B 6 - RCA Male
Environmental Compliant
RoHS Yes
Package Information
Package Quantity 1
DB25 Male to 6 x RCA Male 6-channel Premium Snake cable, THX pinout
$87.56
Premium Snake Cables
Length in Feet
$87.56
