CPH-CN-TB12-30A

Insulated Terminal Block, 12 circuit, 22-10AWG, 30A

Connectors
$3.95
CPH-CN-TB12-30A

Product Details

CableChum® offers Copper Splice Connectors - Insulated Terminal Block, 12 circuit, 22-10AWG, 30A

This insulated terminal block has 12 terminals that can house a variety of wire gauges. It is used to join two 22-10 AWG wires together. The modular design allows for the block to be cut into smaller sections or stacked end-to-end.

Physical Characteristics
Color White
Material Nylon 66
Insulated Yes
Number of Terminals 12
Wire Size 22-10 AWG (30 Amp) - 18-14 AWG (20 Amp)
Voltage Rating 300 V

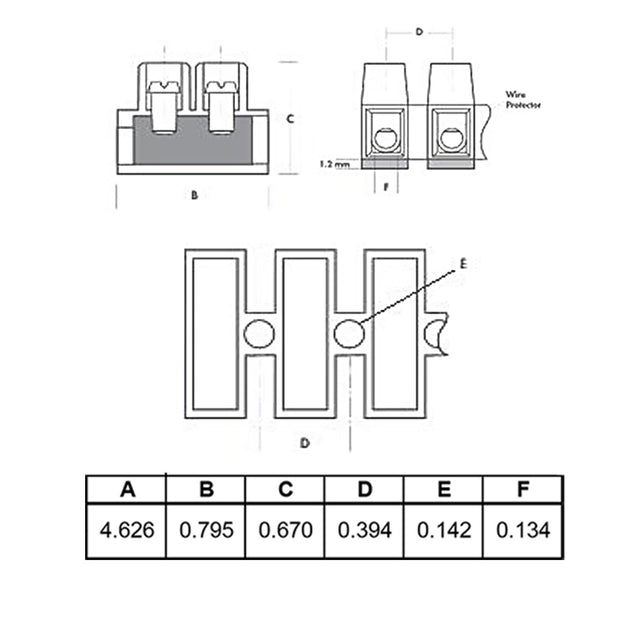

Dimensions 4.6 L, 0.7 W, 0.6 H inches [11.7 L, 2.0 W, 2.0cm]
Terminal Hole Size 0.14 inches [0.4 cm]
Approvals
CSA Yes
c(UL)us Yes
